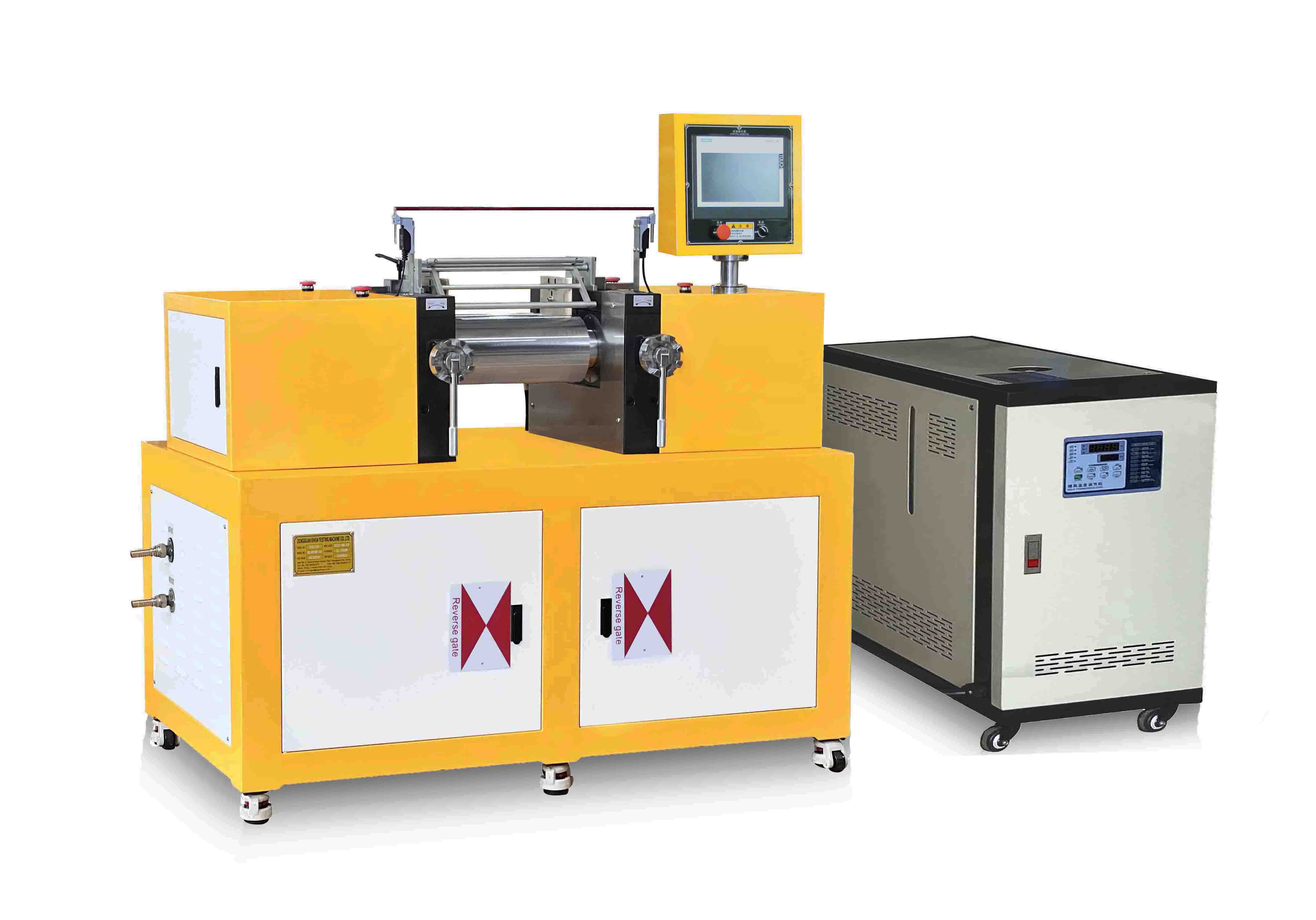

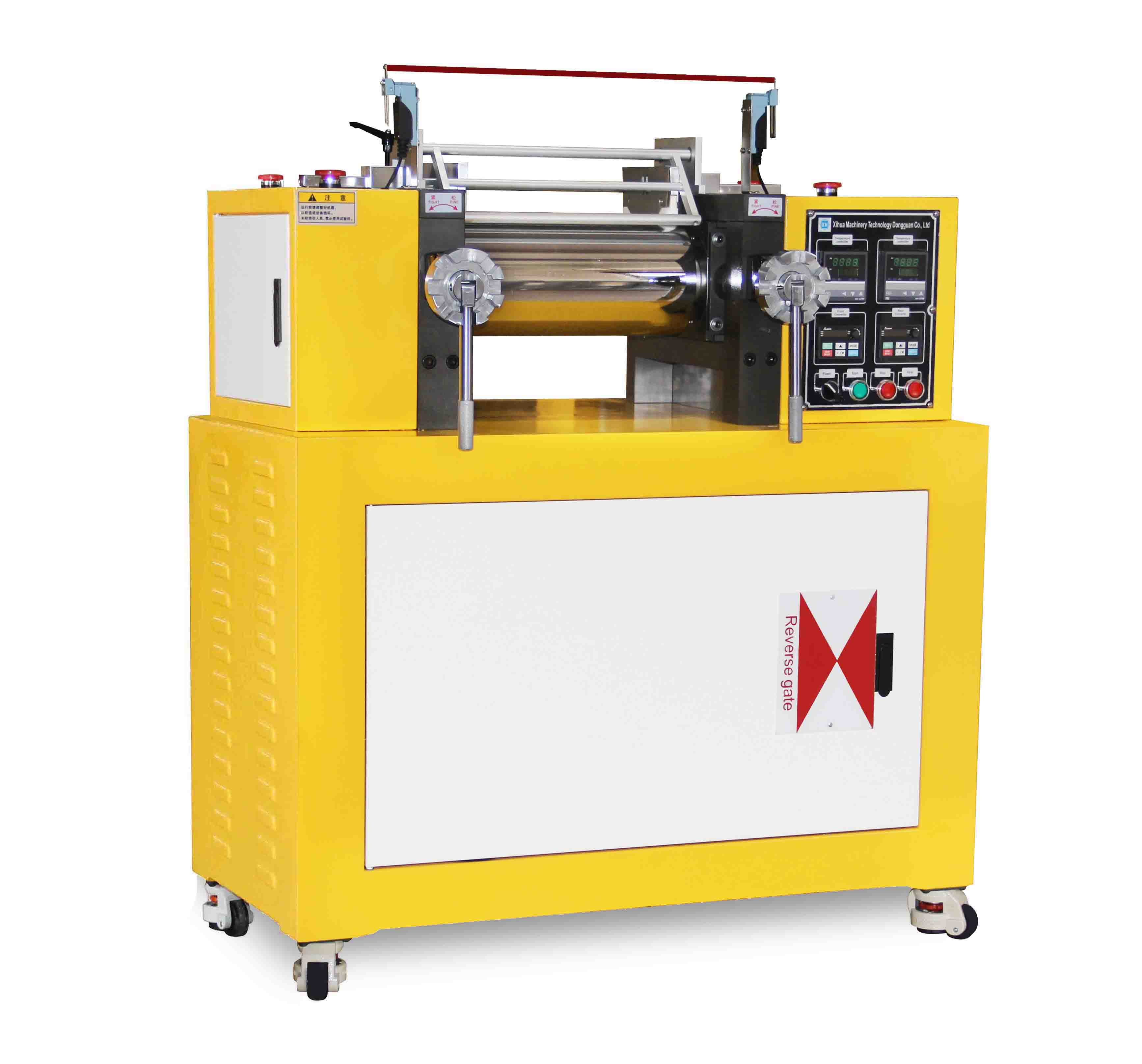

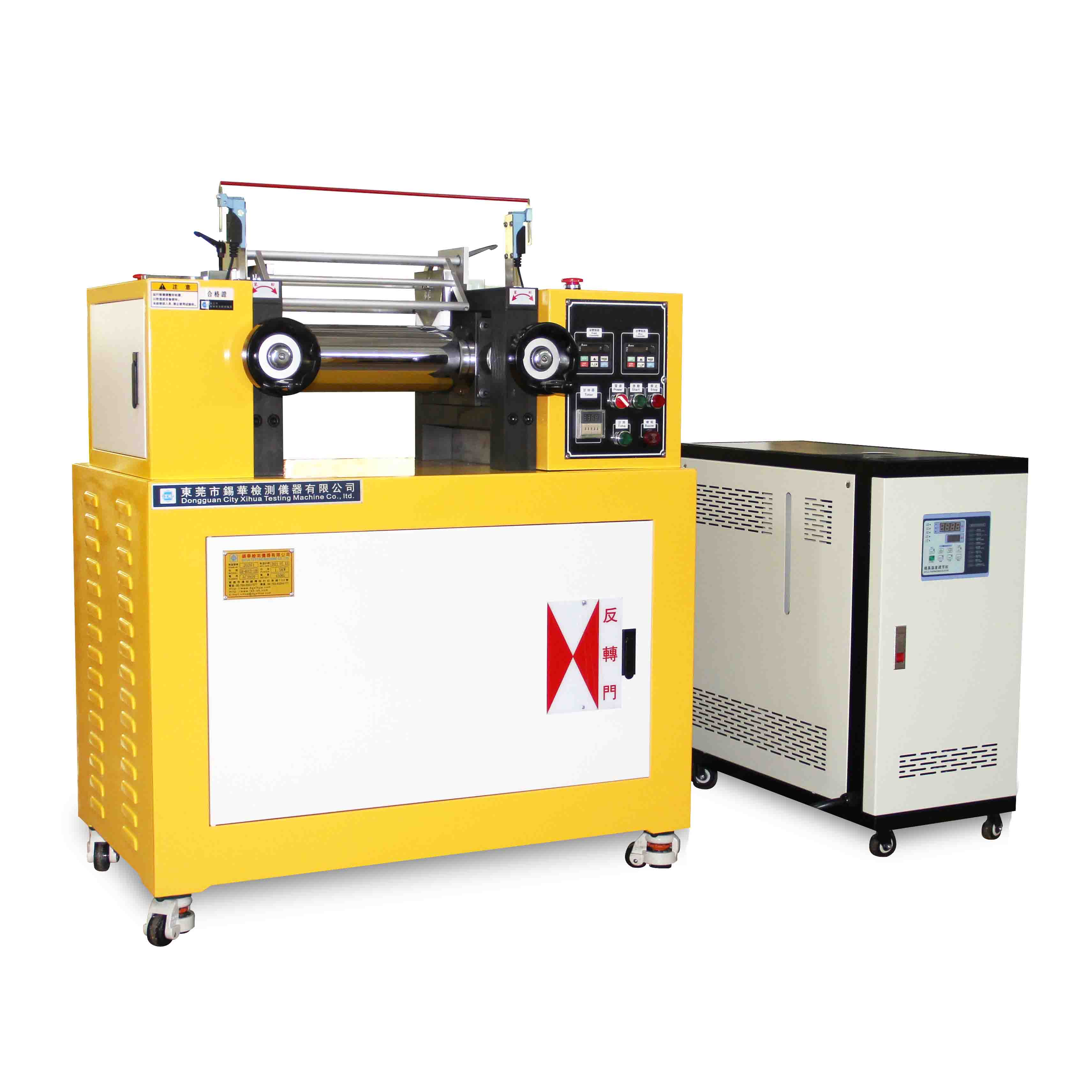

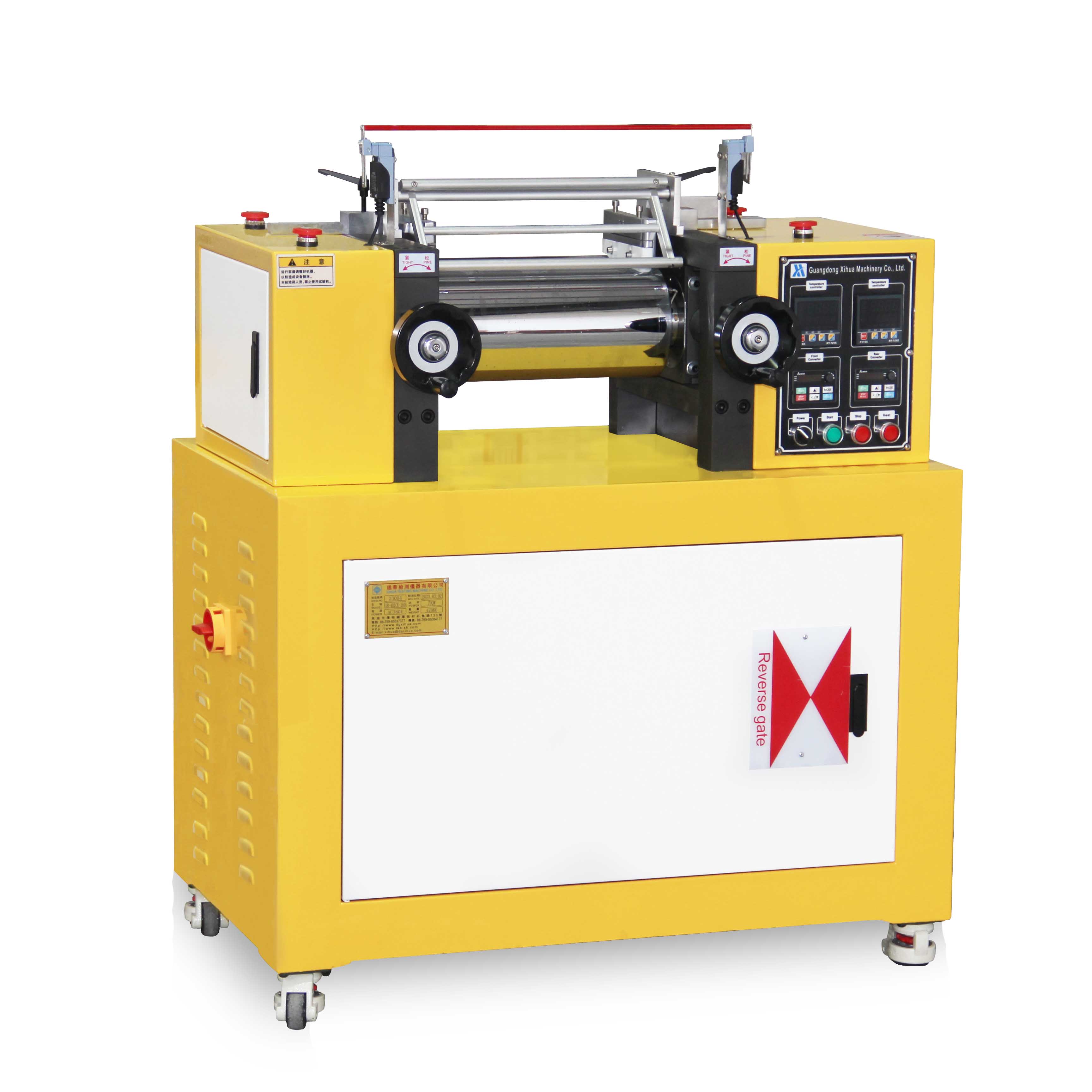

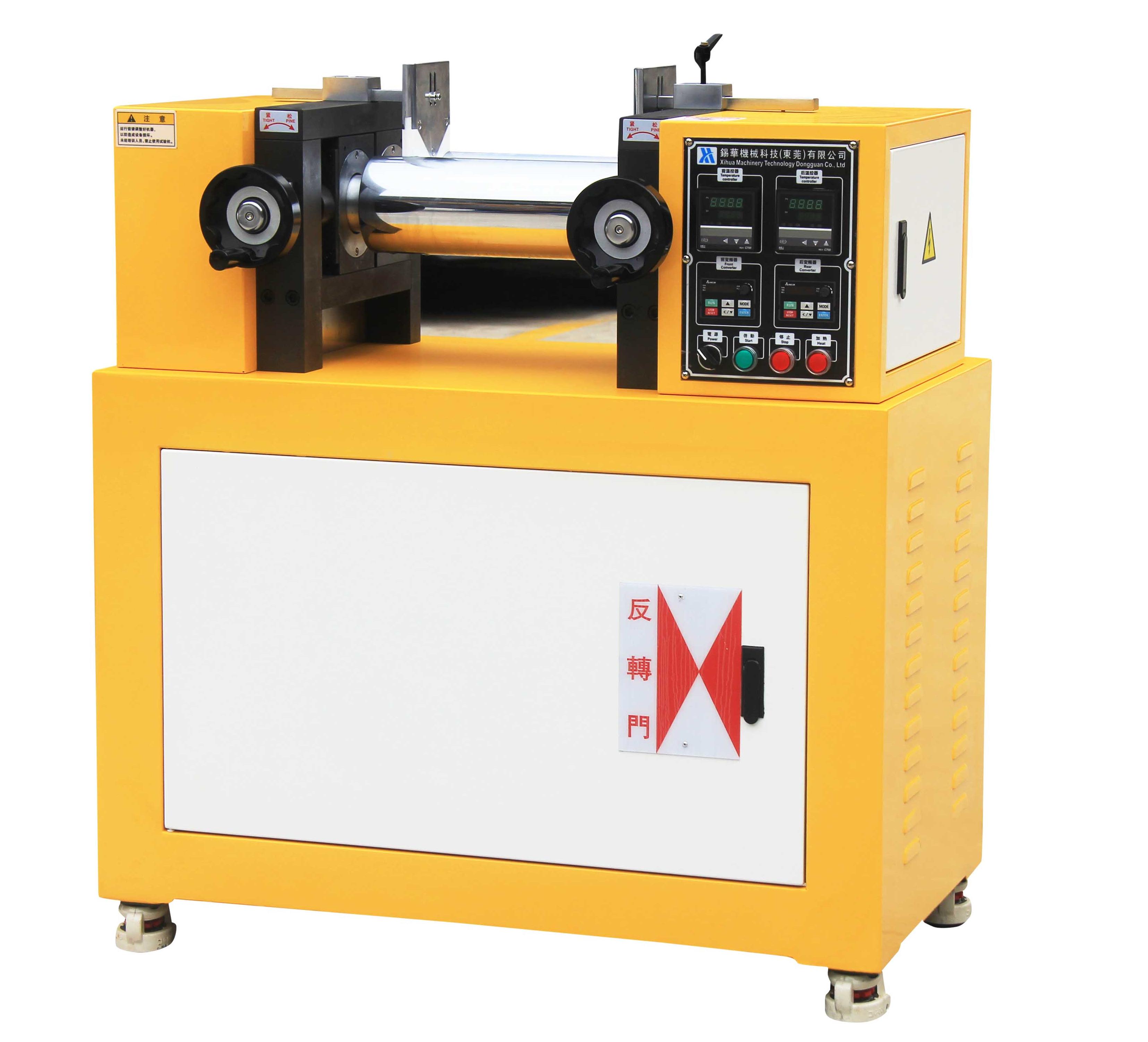

XH-401开炼机

我要询价

XH-401电加热系列

> 简介 Introduction

适用于橡胶、塑胶原料、颜料、色母粒等高分子聚合物混炼分散。

Suitable for mixing and dispersing polymers such as rubber, plastic raw materials, pigments,masterbatches, etc.

> 应用范围 Product Features

新产品研发、配方优化 New product development and formula optimization

产品质量控制和原材料测试 Product quality control and raw material testing

加工性能研究和工艺优化 Processing performance research and process optimization

配方材料共混性能测试 Formulation material blending performance test

教学科研应用 Teaching and research application

> 技术参数 Technical Parameters

型号Model No.	XH-401A	XH-401 B		XH-401C
辊筒转速Roller speed	定速 Fixed speed	单调频Single frequency inverter		双调频Dual frequency inverter
控制方式Control Mode	按键式或PLC系统程控PID control or PLC program control
辊筒尺寸Size of roll	120 x 350mm 或指定(or customized)
加热方式Heating Mode	电加热/油加热 electrical heating / oil heating
冷却方式CoolingMode	无冷却或自来水冷却(可选配)No cooling or tap watercooling (optional)
调距方式 Roll gap adjustment	手动调节或电动调距Manual or electric gap adjustment
翻胶方式 Flipping Mode	手动翻胶或自动翻胶Manual or automatic flipping
安全装置 Safety device	反转、停止或紧急弹开装置Reverse stop or emergency opening system
电机功率 Motor Power	0.75KW或指定x1台0.75KW or customized ×1		0.75KW或指定x2台0.75KW or customized × 2
体积Volume( W×D×H )	1100×560×1150mm
重量(kg) Weight	400kg		450kg
电源Power Supply	3 § , AC380V
