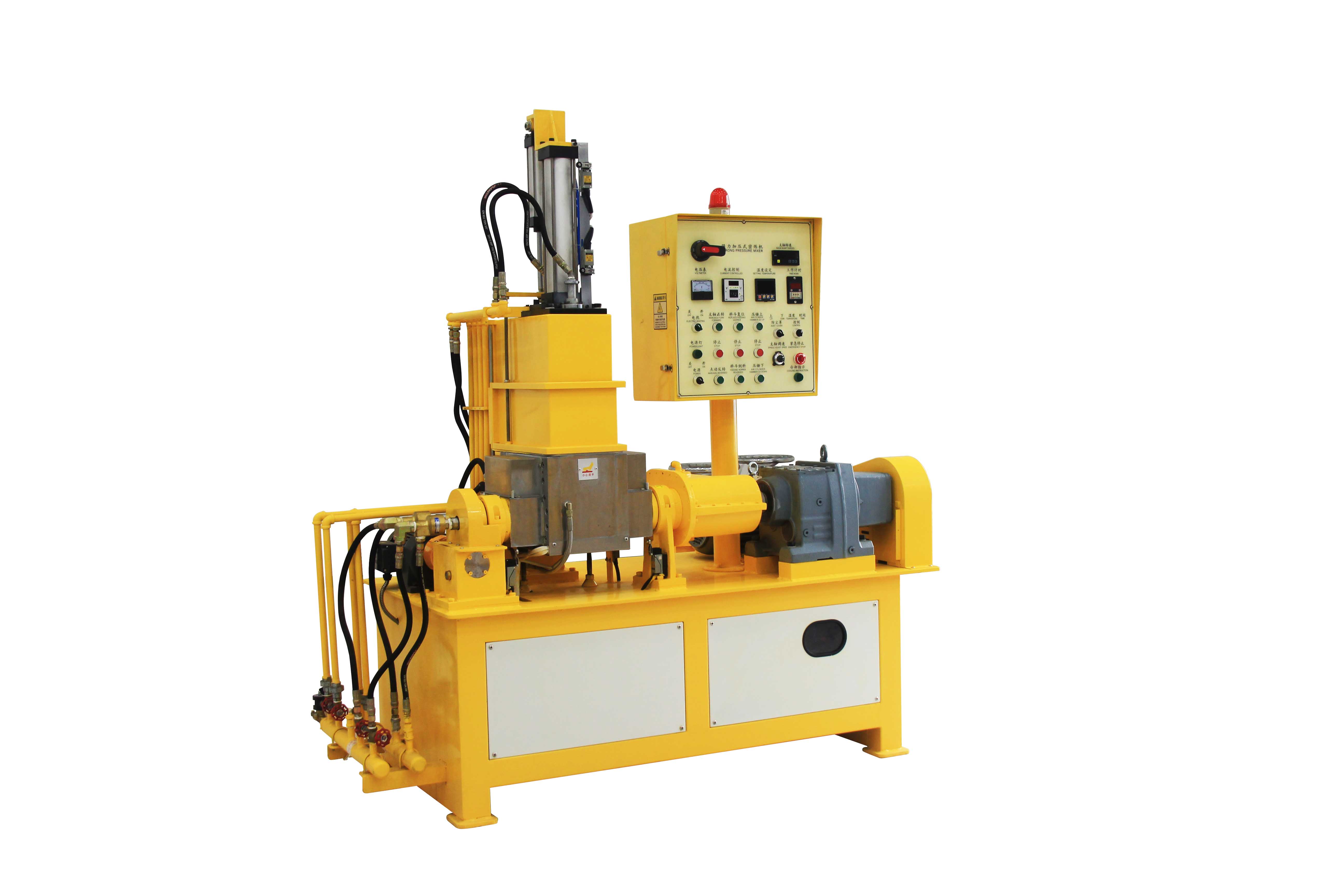

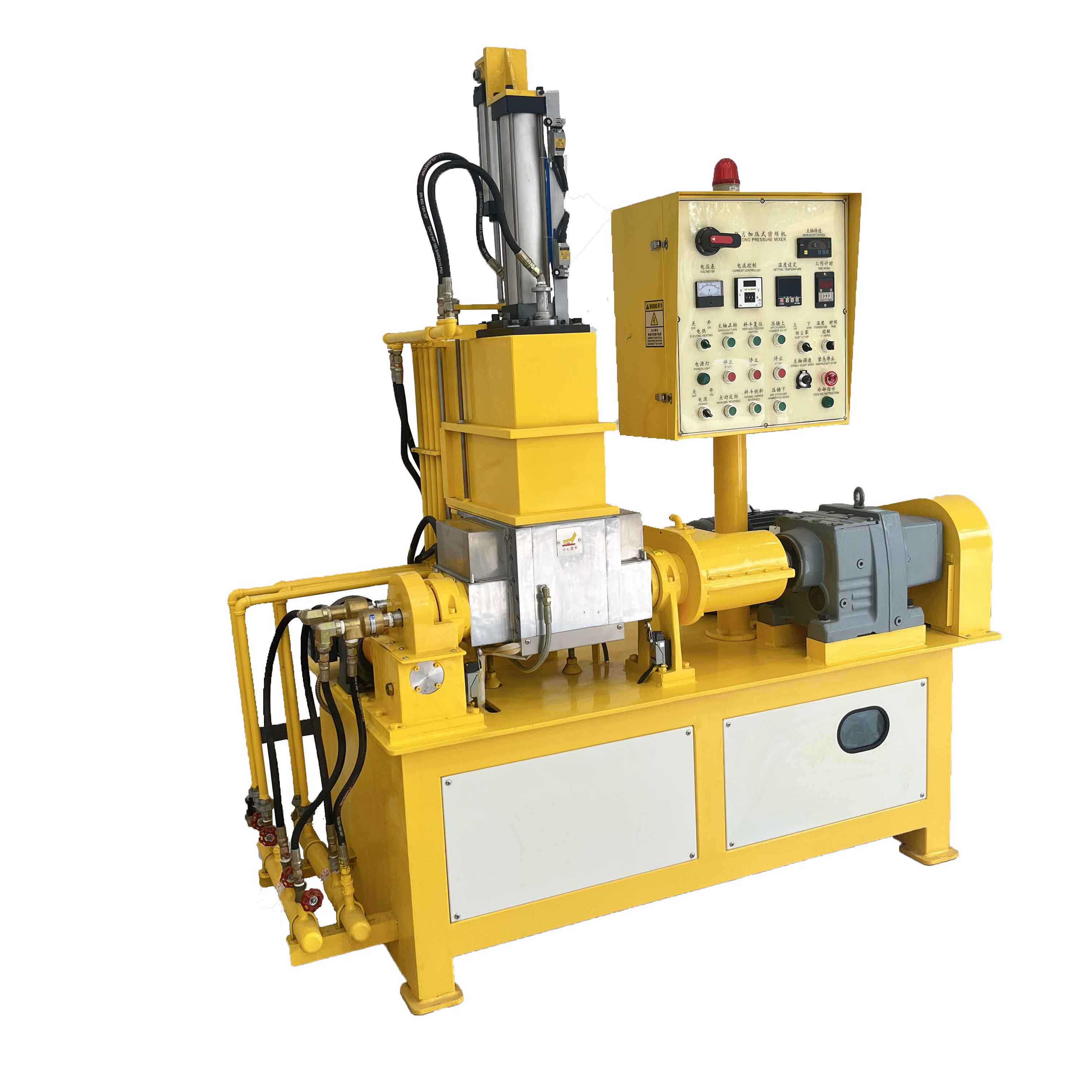

XH-420密炼机

所属分类：密炼机
浏览次数：139
二维码：
发布时间：2018/7/13 2:13:59

我要询价

产品概述

> 简介Introduction：

本机适用于塑料、橡胶、合成胶、热熔胶及各种低粘度物料等各式化学原料的搅拌、捏合、分散。

This machine is suitable for mixing, kneading and dispersing of various chemical raw

materials such as plastic, rubber, synthetic rubber, hot melt adhesive and lowviscosity materials.

> 工作原理Working principle

由两支表面带螺旋棱角的搅叶轴，封闭在“w”形容室内，在一定压力与温度条件下，两轴做相对差速运转，使胶料搅拌分散。

Two agitator shafts with spiral edges on the surface are enclosed in the' W' chamber. Undercertain pressureandtemperatureconditions, the two shafts are operated at a relatively different speed to stir anddispersethe materials.

> 产品特点 Product Featurs

用于塑胶、硅橡胶、合成胶、金属粉、陶瓷粉等各式化学原料的搅拌、捏合、分散；

Usedformixing, kneading, and dispersing various chemical raw materials such as plastic, silicone rubber, synthetic rubber, metal powder, ceramic powder, etc

新型防漏设计，拆取跟换方便；

Newleak-proof design, easy to removeand replace

全新加热冷却系统，升温快，冷却效果好；

New heating and cooling system, fast heating and good cooling effect

针对金属粉末，陶瓷行业，物料接触部分，喷涂超耐磨合金处理，大大提高机器使用寿命；

Formetai powderandceramic.spray ultra wear-resistant alloy on the contact parts of the material, which greatly improves the service life of the machin

> 技术参数 Technical Parameters

型号 Model No.	XH-420-1	XH-420-3	XH-420-5	XH-420-10
密炼总容积 Mixing volume	1L	3L	5L	10L
控制方式Control Mode	按键控制或PLC触摸屏控制(可选配)Key Control/PLC Control (Optional)
卸料方式 Discharge method	反转卸料或开合式 Reverse discharge or open close type
驱动电机功率 Drive motor	3.75KW	7.5KW	11KW	18.5KW
翻转电机Flip motor	0.75KW	0.75KW	0.75KW	0.75KW
转子转速(前后) Rotor speed (front/rear)	40/31 rmin (变频可调adjustable )
翻转角度Flip angle	110℃
空气压力Air pressure	0.5-0.8Mpa
体积(HxWxD) Volume	1800 x 900 x1900mm	1900 x1300 x1500mm	1900 x1300 x1500mm	2100 x1100 x 2300mm
重量(kg) Weight	850kg	1300kg	1500kg	1800kg
电源 Power Supply	3 § , AC380V
