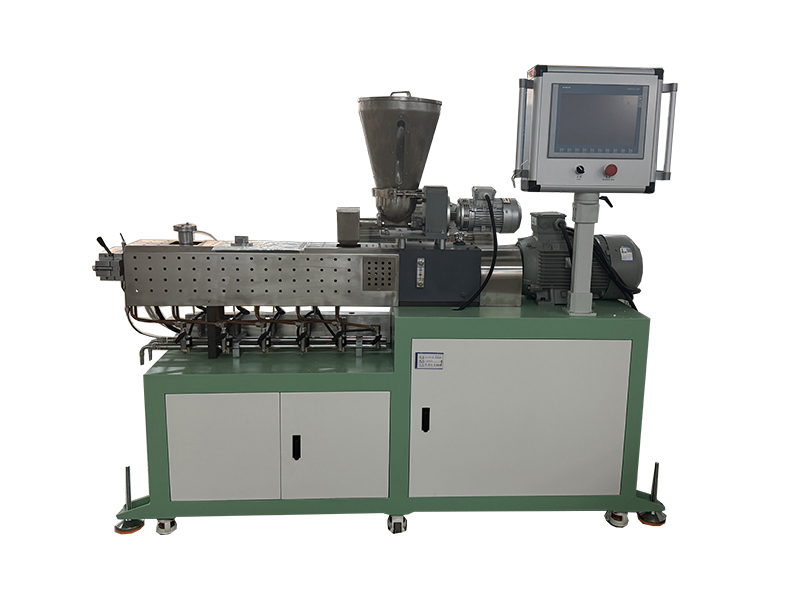

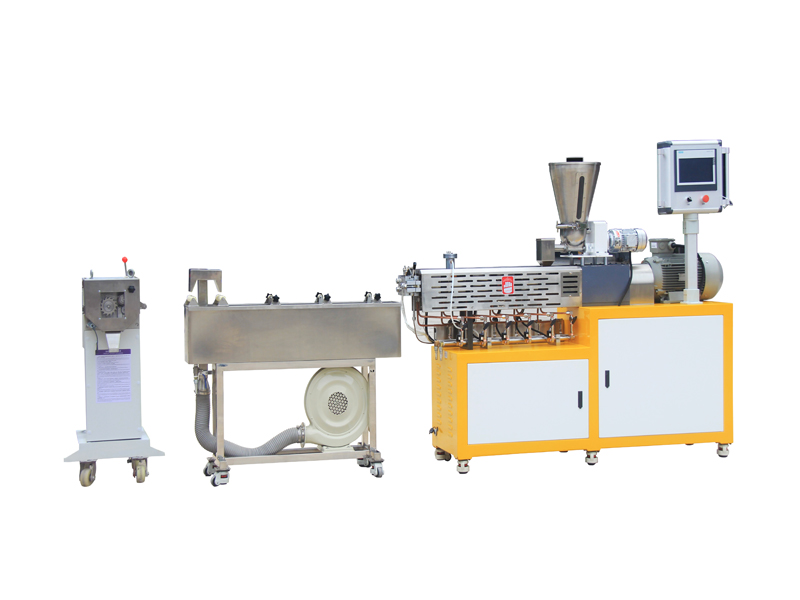

XH-433双螺杆挤出造粒机

所属分类：造粒机
浏览次数：125
二维码：
发布时间：2018/7/13 12:02:15

我要询价

产品概述

　> 简介 Introduction

本机适合工程塑胶、改性塑胶、废旧塑胶、色母粒的混炼加工实验，具有均质、塑化着色、填充改性等功能。

This machine is suitable for mixing and processing experiments of engineering plastics, modified plastics, waste plastics and masterbatches. It has functions of homogeneous, plasticization and coloring, filling modification etc.

> 应用范围：Application

聚合物料混合、混炼挤出造粒Polymermaterial mixing, extrusion and granulation

复合材料的共混改性与反应挤出 Blending modification and extrusion of composite materials

高分子合金高效混炼 Efficient mixing of polymer alloys

聚合物填充增强改性Polymerfilling, reinforcement modification

物料脱水、脱挥与排气Material dehydration, devolatilization, and exhaust

小批量生产Small batch production

> 技术参数 Technical Parameters

型号 Model No.	XH-433-25	XH-433-35
控制系统 Control system	PLC 控制 PLC control
产量(kg) Capacity	约 1-1 Okg/h根据工艺配方1 -1 Okg/h(decide by formula)	约30kg/h根据工艺配方About 30kg/h(decide by formula)
喂料机Feeder	双骤杆定量喂料或指定Twin screw quantitative feeding or customized
螺杆直径 Screw diameter	21.7mm 或指定(or customized)	35mm 或指定(or customized)
长径比L/D	40:1	40:1-48:1
螺杆转速rpm Screw speed	0-300rpm	0-500rpm
主电机Motor	4KW	18.5KW
冷却装置 Cooling device	水冷/风冷(可选配)Air/water cooling (optional)

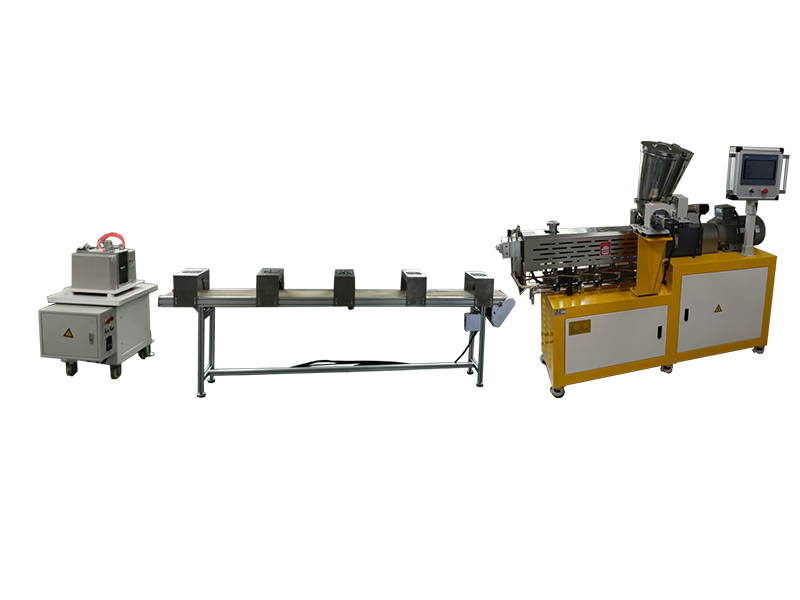

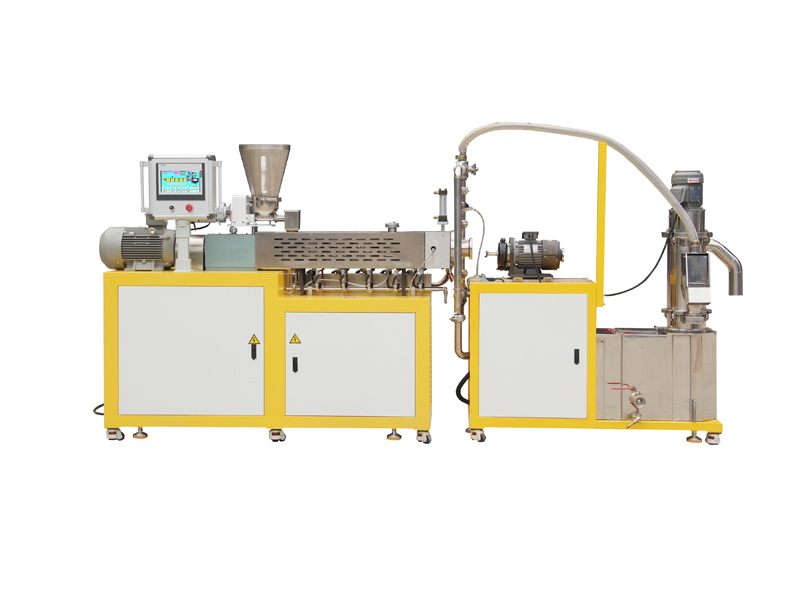

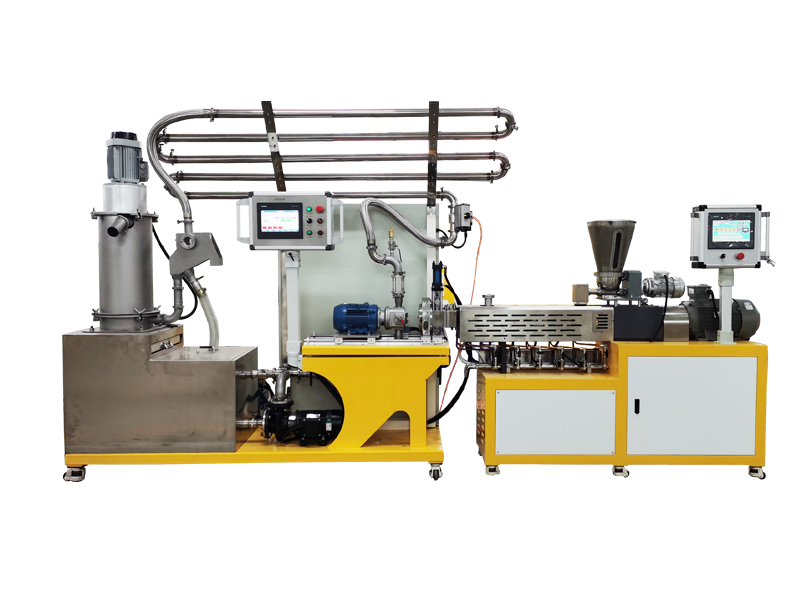

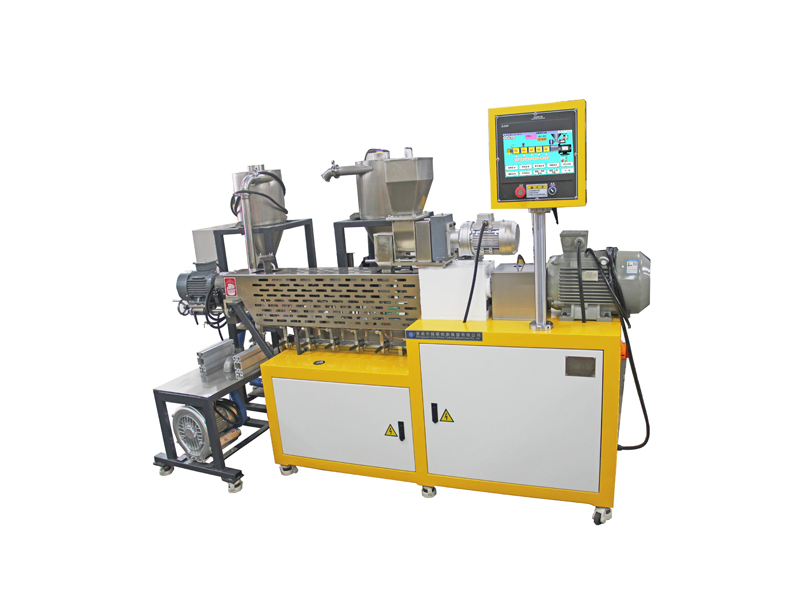

切粒方式 Cutting device	水拉条/水下切/热切 Water strips/underwater cutting/hot cutting
换网器 Screen changer	手动换网器 Manual screen changer
总功率Power	12KW	25KW
体积(mm) (WxDxH) Volume	4000 x 550 x 1600mm	6800 x 960 x 1940mm
重量(kg) Weight	约580kg	约1900kg
电源 Power Supply	3 § , AC380V

※特殊型号可根据客户要求设计制作。Special models can be designed according to customers ¹ requirements.

> 产品特点 Product Features

PLC控制系统自动化的程序操控；PLC control system automation program control

双螺杆定量喂料、侧喂料多种可选择，可适用于颗粒料、粉料、液体料；Multiple options for twin screw quantitative feeding and side feeding, suitableforpellets, powder, and liquid materials

积木式螺杆元件自洁能力强，可根据工艺需要调整螺杆组合，实现一机多用；The modular screw elements have strong self-cleaning ability, and the screw combination can be adjusted according to the process needs, achieving multiple uses for one machine

快速手动换网器，增加塑化聚合物并将熔体内杂质过滤掉；Quick manual screen changer to filter out impurities in the melt
