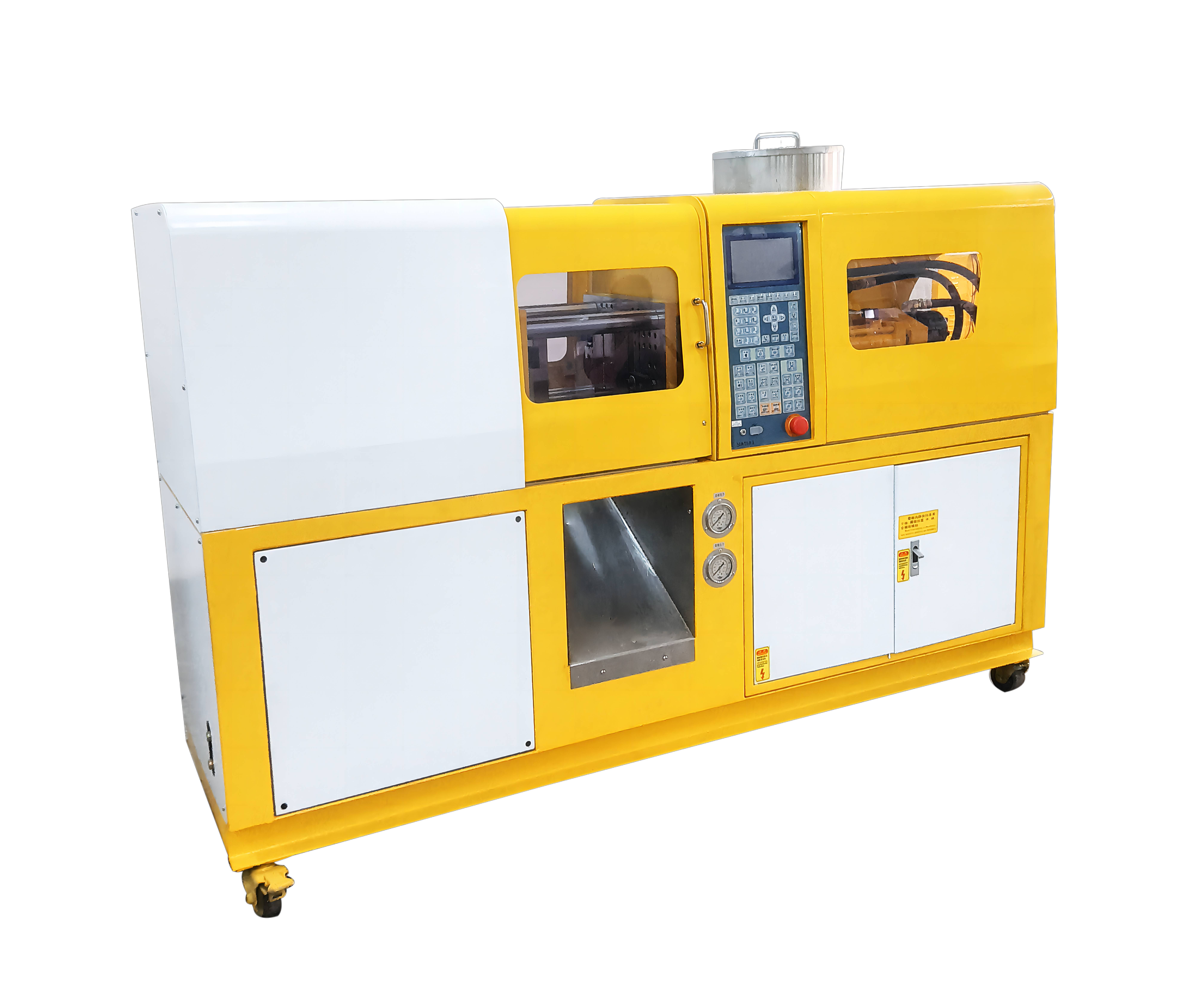

XH-436小型注塑机

我要询价

　> 产品特点 Product Features

伺服系统整机各动作快速、平稳The servo system moves fast and smooth

控制性重复性好、超节能Good control repetition, super energy saving

产品可自动落下、自动成型 Theproductcan beautomatically dropped, automatic forming

机身低、供料方便、易保养、对安置场地无高度限制Low fuselage, convenient material supply, easy to maintain, and nohigh restrictionsonthe resettlementsite

> 技术参数 Technical Parameters

规格 Specifation	型号 Model No.	Unit	20T	25T	40T	60T
射出系统 Injection unit	螺杆直径Screw diameter	mm	22	22	25	28
	射出压力 Injection pressure	kg/cm2	2170	2170	1960	2170
	射出量Injection quantity	G/OZ	40/1.4	40/1.4	64/2.2	80/2.8
	螺杆行程Screw stroke	mm	110	110	110	140
	射嘴行程Nozzle stroke	mm	150	150	200	200
锁模系统 Clamp Unit	锁模力 Clamping Force	Tons	20	25	40	60
	模板尺寸Platen size	mm	380*290	380*290	430*430	470*470
	模柱间距Tie-bars spacing	mm	250*200	250*200	280*280	310*310
	最小模厚Min mold thickness	mm	100/40	130/100	120/160	160/200
	开模行程Mold opening stroke	mm	215	215	215	250
	最大开模Max mold opening distance	mm	255/315	315/345	340/380	410/450
油电系统 Power Unit	最大液压压力Max hydraulic pressure	kg/cm2	140	140	140	140
	马达电力Motor power	KW	4(5HP )	4(5HP )	4(5HP)	7.5(1 OHP)
	总用电量Total power consumption	KW	6	6	6.4	11.5
其它Other	机器总重Machine weight	kg	1000	1000	1500	2000
其它Other	机器外形尺寸Machine dimensions	mm	2020 x 600 x 1400		2400 x 700x1500	2600x700x1500
